Automation                                                                   Our Products
Automation offered by us are useful for applying straps around the loading unit without consuming labor and time. These super grade machines find application in multiple industries around the world for strapping of solid and liquid products vertically as well as horizontally. We offer these machines in five models,Filling,capping & labelling machine, Collator with Shrink & Case Packing, Stacker with Shrink & Case Packing, Pick and Place System and Sleeve Wrapper for Cylindrical Bottles.



  Filling, Capping & Labelling Machine
Specifications :
Body Structure of SS 304 and contact parts in SS 316.
Useful for Mineral Water/Juice/Milk/Ice cream /Jam /Sauce etc.
Suitable for Round/Square/Hexagon Containers.
Automatic Loading & Unloading operations.
Volume can be fill from 15 ml to 300 ml .
Production speed 72-75 cups/min with rinsing operation & 90 Cups/min without rinsing operation.
Require Pre cut Aluminum Foil/Printed Laminated Film.


 Collator with Shrink & Case Packing
AUTO COLLATOR:
AC drive with adjustable speed and break.
Festo pneumatic parts for the collator.
Fully programmable for the different types of matrix.
No. Chang parts in the collator.
Adjustable for any matrix without any change in parts.
High speed machine performing 6 multi pack per minute.


MACHINE SPECIFICATIONS:
Machine dimension Dim. : - 380x [L] 305x [W] x100 [H] mm.
Power : - 440V, 3 Phase, 50Hz, 14 KW
Air : - 95 PSI at 6Lit. /Sec. (12.7C.F.M)
Max. No. of packs/min. : - 35 Packs/Min.
Shrink Tunnel Dim. : - 200 [W] x 200 [H] x 1000mm [L]
Working Height : - 900mm

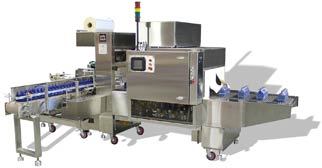

 Stacker with Shrink & Case Packing

Product Specification:

Stacker:
We manufacture Stacker with Shrink and Case Packing



 Pick and Place System
Specifications :
For the Pick and place system:
In-feed Conveyor   Pick and place system
Lane divider   Carton erector
Collating   Carton top closer
Gravity Roller conveyor / out feed conveyor.

For the down stacking system:
In- feed Conveyor (pin feed) Down stacker for the proposed matrix
In feed conveyor with 90 orientation change system Carton erector
Carton holder Carton top closer
Intermediate conveyor for the feeding and control of down stacker.
Gravity roller conveyor / out feed conveyor

 Sleeve Wrapper for Cylindrical Bottles
Shreeji Shrink System is a well recognized manufacturer, wholesale supplier and exporter of a splendid range of semi automatic sleeve wrapper for cylindrical bottles. These sleeve wrapper machines are engineered from best quality material, which is procured from reliable suppliers. We conduct various stringent test to make these machines defect free and of high standard. Our auto sleeve wrappers can also be availed in customized sizes according to the specifications of the clients.
Specifications :
Container : Cylindrical Bottles/container
Sleeve applying area : Body sleeving/neck sleeving
Bottle Dia : 30mm to 100mm
Capacity : 80-100 bottles / minute
Sleeve cut length : 50mm to 200mm



Machine Features
Fully automatic operation.
Rigid Structure.
Good Speed.
PLC Controlled.
Machine will have manual up & down arrangement.
Shrink Tunnel.
Prerequistes
Floor Space requirement
  Approximately 1mtr from all sides of the machine. Hence clearance of 1mtr should be added to the actual size of the machine. i.e. 4 mtrs x 2.2mtrs x 3mtrs height.
Operator requirement
  1 Skilled operator, 1 semi-skilled operator.
Electrical Supply
  Connected load 2KW, 415+/-10%, 50Hz +/-3% 3Phase Earth & Neutral
Utility
  3 Phase electric supply. 5HP Compressor, since the machine requires clean and dry air supply for pneumatic cylinders.
Essential
1 Caps should be properly seated on the bottle.
2 Operator should understand the working of the machine properly.
Technical Specification
Dimension of the machine 3mtrs x 1.2mtrs x 2.4mtr height. Conveying system with a feed screw arrangement ?3 mtr long.
0.5HP Hindustan make geared motor for conveyor. 0.25HP Hindustan make Geared motor for unwind nip arrangement
0.25HP Hindustan make geared motor for feed screw 0.25HP Hindustan make motor for sleeve dropper.
Pneumatics of Festo/Janatics/SMC make. Electric accessories of siemens/L&T/standard make.
Variable frequency drive, Delta make. PLC of "Mitsubishi/"Messung" make.
"Mitsubishi "make servomotor. "1.2 meter long tunnel with MS Body structure
2 nos 0.25HP blower motor

Machine Description
Roll type sleeve should be loaded on the unwind station.
Web is unwound from the unwind unit through a unwind nip arrangement.
This web is then passed through a dancer unit; this unit maintains the required tension on the web.
Then the web passes through a decreaser, in this unit the web is opened fully.
This web is then passed towards the cutting unit through a feed nib arrangement.
In the cutting unit the sleeve is cut to the required length
This sleeve is then pushed over the body of the bottle through a sleeve pusher arrangement.
Bottles are feeded to the machine through a feed screw arrangement for proper pitching.
Bottles with the sleeve applied over the body comes out from the other side of the machine and pass through the shrink tunnel, where it gets shrinked
